Maximum vertial wind map

Use data provided by the Unified Model’s .pe0 file to geographically locate the site of the largest vertial winds within a model domain. Animate this data as the model progresses. Useful for diagnosing model instabilities.

import xarray as xr
import datetime
import cartopy.crs as ccrs
from matplotlib import pyplot as plt, animation

ts1=30
starttime=datetime.datetime(year=2022,month=2,day=21,hour=18)
td1=datetime.timedelta(seconds=ts1)

ts2=75
td2=datetime.timedelta(seconds=ts2)

tdg=datetime.timedelta(seconds=15)

ds=xr.open_dataset(f"/g/data/hh5/tmp/WACI-Hackathon-2023/AUS2200/data/surf/orog_1hr_{(starttime + datetime.timedelta(hours=7)).strftime('%Y%m%d')}_20220307.nc")

ds

<xarray.Dataset>
Dimensions:    (latitude: 2120, longitude: 2600, time: 336)
Coordinates:
  * latitude   (latitude) float32 -48.79 -48.77 -48.75 ... -6.871 -6.852 -6.832
  * longitude  (longitude) float32 107.5 107.5 107.6 107.6 ... 158.9 159.0 159.0
  * time       (time) datetime64[ns] 2022-02-22T00:00:30 ... 2022-03-08
Data variables:
    orog       (time, latitude, longitude) float32 ...
Attributes: (12/25)
    Conventions:          CF-1.6, ACDD-1.3
    title:                AUS2200 UM amip simulation over Australian region f...
    summary:              A limited area model study of the entire Australian...
    source:               UM v12.2 ECMWF ERA5 forecast fields used as forcings
    license:              http://creativecommons.org/licenses/by/4.0/
    product_version:      0.1
    ...                   ...
    geospatial_lon_min:   107.5101
    geospatial_lon_max:   0.0198
    contributor_name:     Sam Green, Paola Petrelli
    contributor_email:    sam.green@unsw.edu.au, paola.petrelli@utas.edu.au
    contributor_url:      https://orcid.org/0000-0003-1129-4676, https://orci...
    contributor_role:     post-processing, post-processing

xarray.Dataset

• Dimensions:
  • latitude: 2120
  • longitude: 2600
  • time: 336
• Coordinates: (3)
  • latitude
    (latitude)
    float32
    -48.79 -48.77 ... -6.852 -6.832

    standard_name :

    latitude

    units :

    degrees

    array([-48.788   , -48.7682  , -48.748398, ...,  -6.871399,  -6.851597,
            -6.831799], dtype=float32)

  • longitude
    (longitude)
    float32
    107.5 107.5 107.6 ... 159.0 159.0

    standard_name :

    longitude

    units :

    degrees

    array([107.52    , 107.539795, 107.55959 , ..., 158.9406  , 158.96039 ,
           158.9802  ], dtype=float32)

  • time
    (time)
    datetime64[ns]
    2022-02-22T00:00:30 ... 2022-03-08

    standard_name :

    time

    array(['2022-02-22T00:00:30.000000000', '2022-02-22T02:00:00.000000000',
           '2022-02-22T03:00:00.000000000', ..., '2022-03-07T22:00:00.000000000',
           '2022-03-07T23:00:00.000000000', '2022-03-08T00:00:00.000000000'],
          dtype='datetime64[ns]')

• Data variables: (1)
  • orog
    (time, latitude, longitude)
    float32
    ...

    standard_name :

    surface_altitude

    units :

    m

    source :

    Data from Met Office Unified Model

    um_version :

    12.2

    STASH :

    [ 1 0 33]

    [1852032000 values with dtype=float32]

• Indexes: (3)
  • latitude
    PandasIndex

    PandasIndex(Float64Index([ -48.78799819946289,   -48.7681999206543,  -48.74839782714844,
                  -48.728599548339844, -48.708797454833984,  -48.68899917602539,
                   -48.66919708251953,  -48.64939880371094,  -48.62959671020508,
                  -48.609798431396484,
                  ...
                   -7.009998321533203,  -6.990200042724609,   -6.97039794921875,
                   -6.950599670410156,  -6.930797576904297,  -6.910999298095703,
                   -6.891197204589844,   -6.87139892578125,  -6.851596832275391,
                   -6.831798553466797],
                 dtype='float64', name='latitude', length=2120))

  • longitude
    PandasIndex

    PandasIndex(Float64Index([ 107.5199966430664,   107.539794921875,  107.5595932006836,
                  107.57939910888672, 107.59919738769531,  107.6189956665039,
                   107.6387939453125, 107.65859985351562, 107.67839813232422,
                  107.69819641113281,
                  ...
                    158.802001953125, 158.82179260253906,  158.8415985107422,
                  158.86138916015625, 158.88119506835938,  158.9010009765625,
                  158.92079162597656,  158.9405975341797, 158.96038818359375,
                  158.98019409179688],
                 dtype='float64', name='longitude', length=2600))

  • time
    PandasIndex

    PandasIndex(DatetimeIndex(['2022-02-22 00:00:30', '2022-02-22 02:00:00',
                   '2022-02-22 03:00:00', '2022-02-22 04:00:00',
                   '2022-02-22 05:00:00', '2022-02-22 06:00:00',
                   '2022-02-22 06:00:30', '2022-02-22 08:00:00',
                   '2022-02-22 09:00:00', '2022-02-22 10:00:00',
                   ...
                   '2022-03-07 15:00:00', '2022-03-07 16:00:00',
                   '2022-03-07 17:00:00', '2022-03-07 18:00:00',
                   '2022-03-07 18:00:30', '2022-03-07 20:00:00',
                   '2022-03-07 21:00:00', '2022-03-07 22:00:00',
                   '2022-03-07 23:00:00', '2022-03-08 00:00:00'],
                  dtype='datetime64[ns]', name='time', length=336, freq=None))

• Attributes: (25)

  Conventions :

  CF-1.6, ACDD-1.3

  title :

  AUS2200 UM amip simulation over Australian region for the 22 Feb to 07 Mar 2022

  summary :

  A limited area model study of the entire Australian continent at 2.2 km resolution, using the UM atmospheric model. ERA5 and ERA5 land reanalysis datasets were used to provide intial and boundary conditions. The study covers the time period of 2022-02-22 to 2022-03-7 including high rainfall events

  source :

  UM v12.2 ECMWF ERA5 forecast fields used as forcings

  license :

  http://creativecommons.org/licenses/by/4.0/

  product_version :

  0.1

  contact :

  dsroberts@unimelb.edu.au

  institution :

  Melbourne University

  organisation :

  ARC Centre of Excellence for Climate Extremes

  keywords :

  Cloud Physics, Meteorology, Atmospheric Dynamics

  date_created :

  2023-02-13

  creator_name :

  Dale Roberts

  creator_email :

  dsroberts@unimelb.edu.au

  creator_url :

  https://orcid.org/0000-0003-3952-6344

  creator_role :

  running model, post-processing

  time_coverage_start :

  2022-02-22

  time_coverage_end :

  2022-03-07

  geospatial_lat_min :

  -48.788

  geospatial_lat_max :

  -6.831799

  geospatial_lon_min :

  107.5101

  geospatial_lon_max :

  0.0198

  contributor_name :

  Sam Green, Paola Petrelli

  contributor_email :

  sam.green@unsw.edu.au, paola.petrelli@utas.edu.au

  contributor_url :

  https://orcid.org/0000-0003-1129-4676, https://orcid.org/0000-0002-0164-5105

  contributor_role :

  post-processing, post-processing

x_min=min(ds.longitude)
x_max=max(ds.longitude)
y_min=min(ds.latitude)
y_max=max(ds.latitude)
ex=(x_min,x_max,y_min,y_max)
x_minf=x_min.data.item()
x_maxf=x_max.data.item()
y_minf=y_min.data.item()
y_maxf=y_max.data.item()

x_max

<xarray.DataArray 'longitude' ()>
array(158.9802, dtype=float32)
Coordinates:
    longitude  float32 159.0
Attributes:
    standard_name:  longitude
    units:          degrees

xarray.DataArray

'longitude'

• 159.0

  array(158.9802, dtype=float32)

• Coordinates: (1)
  • longitude
    ()
    float32
    159.0

    standard_name :

    longitude

    units :

    degrees

    array(158.9802, dtype=float32)

• Indexes: (0)
• Attributes: (2)

  standard_name :

  longitude

  units :

  degrees

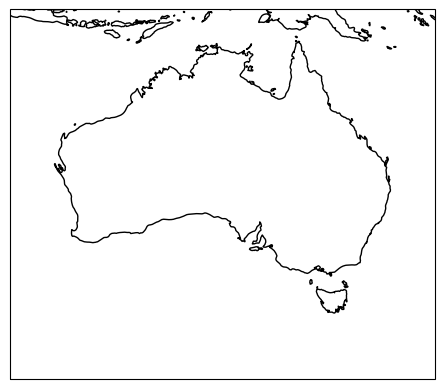

ax=plt.axes(projection=ccrs.PlateCarree())
ax.coastlines('50m',linewidth=1)
ax.set_extent(ex)

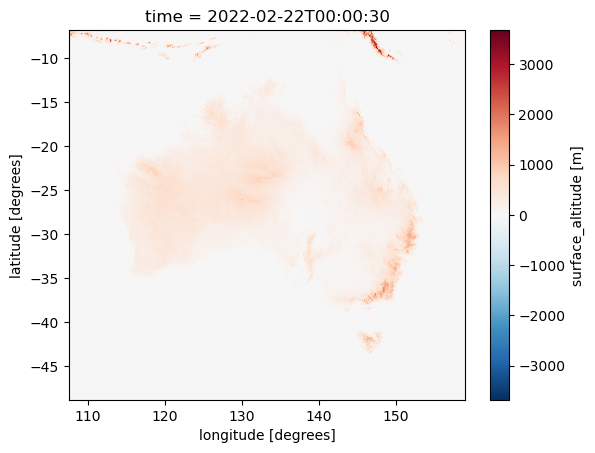

ds.orog[0].plot()

<matplotlib.collections.QuadMesh at 0x150109905400>

prefix=f'/scratch/w40/dr4292/aus2200-instability-analysis/{ts1}sec/'
suffix='Z/aus2200_d0198_RA3_um_fcst_000/pe_output/umnsa.fort6.pe0000'
lines30=[]
for f in ( f'{prefix}20220221T1800{suffix}', f'{prefix}20220222T0000{suffix}' ):
    with open(f,'r') as f:
        lines30.extend([ i.strip() for i in f.readlines() ])
prefix=f'/scratch/w40/dr4292/aus2200-instability-analysis/{ts2}sec/'
lines75=[]
for f in ( f'{prefix}20220221T1800{suffix}', f'{prefix}20220222T0000{suffix}' ):
    with open(f,'r') as f:
        lines75.extend([ i.strip() for i in f.readlines() ])

winddat30_lines=[]
countdown=-1
for l in lines30:
    countdown=countdown-1
    if l.startswith('Maximum vertical velocity'): countdown=2
    if countdown==0:
        winddat30_lines.append(l)

winddat75_lines=[]
countdown=-1
for l in lines75:
    countdown=countdown-1
    if l.startswith('Maximum vertical velocity'): countdown=2
    if countdown==0:
        winddat75_lines.append(l)

winddat30=[ ( starttime+it*td1,float(i.split()[0]),int(i.split()[1]),x_minf+(float(i.split()[3].strip('%'))/100.0)*(x_maxf-x_minf),y_minf+(float(i.split()[5].strip('%'))/100.0)*(y_maxf-y_minf))  for it,i in enumerate(winddat30_lines) ]
winddat75=[ ( starttime+it*td2,float(i.split()[0]),int(i.split()[1]),x_minf+(float(i.split()[3].strip('%'))/100.0)*(x_maxf-x_minf),y_minf+(float(i.split()[5].strip('%'))/100.0)*(y_maxf-y_minf))  for it,i in enumerate(winddat75_lines) ]

time=starttime
i30=0
i75=0

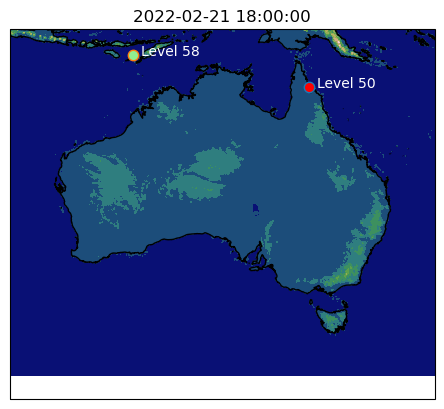

while True:
    _,_,lev30,x30,y30=winddat30[i30]
    _,_,lev75,x75,y75=winddat75[i75]
    ax=plt.axes(projection=ccrs.PlateCarree())
    ax.coastlines('10m',linewidth=1)
    ax.set_extent(ex)
    ax.contourf(ds.longitude,ds.latitude,ds.orog[0],cmap='gist_earth')
    plt.title(time)
    a=plt.plot(x30,y30,marker="o",markersize=7.5,markerfacecolor='red')
    b=plt.plot(x75,y75,marker="o",markersize=7.5,markerfacecolor='lightgreen')
    c=plt.text(x30+1,y30,f"Level {lev30}",color='white')
    d=plt.text(x75+1,y75,f"Level {lev75}",color='white')
    plt.show()
    time=time+tdg
    if winddat30[i30+1][0] == time:
        i30 = i30+1
    if winddat75[i75+1][0] == time:
        i75 = i75+1
    break

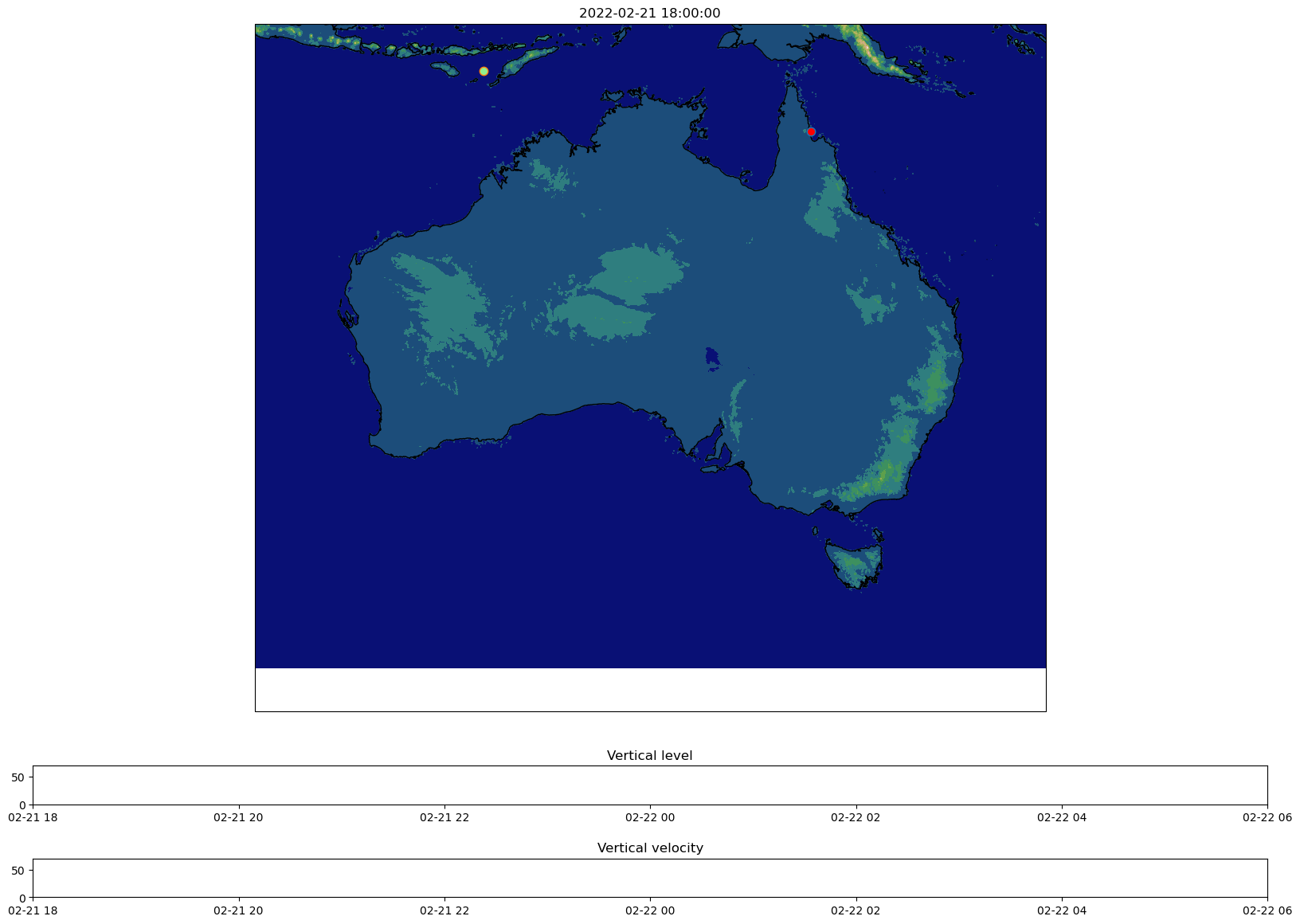

fig = plt.figure(layout=None,figsize=(20,15))
gs = fig.add_gridspec(ncols=1,nrows=20)
ax0 = fig.add_subplot(gs[:-5],projection=ccrs.PlateCarree())

#fig,axs = plt.subplots(nrows=3,figsize=(13, 10.6),gridspec_kw={'height_ratios': [4, 1, 1]},subplot_kw={'projection':ccrs.PlateCarree()})
#ax = plt.axes(projection=ccrs.PlateCarree())
ax0.coastlines('10m',linewidth=1)
ax0.set_extent(ex)
ax0.contourf(ds.longitude,ds.latitude,ds.orog[0],cmap='gist_earth')
ax0.set_title(starttime)
_,vel30,lev30,x30,y30=winddat30[0]
a = ax0.plot(x30,y30,marker="o",markersize=7.5,markerfacecolor='red')
#b = ax[0].text(x30+1,y30,f"Level {lev30}")
_,vel75,lev75,x75,y75=winddat75[0]
b = ax0.plot(x75,y75,marker="o",markersize=7.5,markerfacecolor='lightgreen')
#d = ax.text(x75+1,y75,f"Level {lev75}")

ax1 = fig.add_subplot(gs[-4])
line1, = ax1.step([], [], color='red')
line2, = ax1.step([], [], color='lightgreen')
ax1.set_ylim((0,70))
ax1.set_xlim((starttime,starttime+2880*tdg))
ax1.set_title("Vertical level")
times=[starttime,]
levs30=[lev30,]
levs75=[lev75,]
line1.set_data(times,levs30)
line2.set_data(times,levs75)

ax2 = fig.add_subplot(gs[-2])
line3, = ax2.step([],[], color='red')
line4, = ax2.step([],[], color='lightgreen')
ax2.set_title("Vertical velocity")
ax2.set_ylim((0,70))
ax2.set_xlim((starttime,starttime+2880*tdg))
vels30=[vel30,]
vels75=[vel75,]
line3.set_data(times,vels30)
line4.set_data(times,vels75)

def animate(frame):
    i30 = frame//2
    i75 = frame//5
    ax0.set_title(starttime + frame * tdg)
    times.append(starttime + frame * tdg)
    try:
        _,vel30,lev30,x30,y30=winddat30[i30]
        a[0].set_data((x30,y30))
        levs30.append(lev30)
        vels30.append(vel30)
        line1.set_data(times,levs30)
        line3.set_data(times,vels30)
    except:
        pass

    try:
        _,vel75,lev75,x75,y75=winddat75[i75]
        b[0].set_data((x75,y75))#,marker="o",markersize=7.5,markerfacecolor='blue')
        levs75.append(lev75)
        vels75.append(vel75)
        line2.set_data(times,levs75)
        line4.set_data(times,vels75)
    except:
        b[0].set_data((0,0))
    if frame%100 == 0:
        print(f"{frame} {i30} {i75} {x30} {y30}")

ani = animation.FuncAnimation(
    fig,             # figure
    animate,         # name of the function above
    frames=2880,       # Could also be iterable or list
    interval=33     # ms between frames
)

ani.save(f"/home/563/dr4292/aus2200_instability_analysis/multiplot.mp4")

0 0 0 143.69651544952393 -13.838483894348144
0 0 0 143.69651544952393 -13.838483894348144
100 50 20 122.49491410064698 -10.188294525146482
200 100 40 122.28907331085205 -10.146338325500494
300 150 60 122.44345390319825 -10.398075523376463
400 200 80 122.34053350830078 -10.314163124084473
500 250 100 122.44345390319825 -10.69176892089844
600 300 120 126.30296871185303 -10.146338325500494
700 350 140 122.80367528533935 -11.0693747177124
800 400 160 122.75221508789063 -11.0693747177124
900 450 180 121.41424995422364 -10.272206924438478
1000 500 200 121.25986936187743 -10.356119323730475
1100 550 220 122.5463742980957 -11.027418518066405
1200 600 240 122.44345390319825 -11.027418518066405
1300 650 260 122.34053350830078 -11.0693747177124
1400 700 280 123.00951607513427 -11.111330917358394
1500 750 300 124.65624239349364 -11.446980514526366
1600 800 320 154.9662986907959 -15.390863281250006
1700 850 340 127.84677463531494 -12.537841705322265
1800 900 360 143.59359505462646 -28.103591773986818
1900 950 380 123.11243647003174 -11.405024314880372
2000 1000 400 122.5463742980957 -11.363068115234377
2100 1050 420 149.5629779586792 -10.104382125854492
2200 1100 440 150.95240328979492 -16.271943473815917
2300 1150 460 142.71877169799805 -28.98467196655273
2400 1200 480 126.04566772460937 -12.076323509216309
2500 1250 500 123.31827725982666 -11.740673912048337
2600 1300 520 118.58393909454345 -9.68482012939453
2700 1350 540 119.35584205627441 -10.272206924438478
2800 1400 560 122.95805587768555 -16.90128646850586
